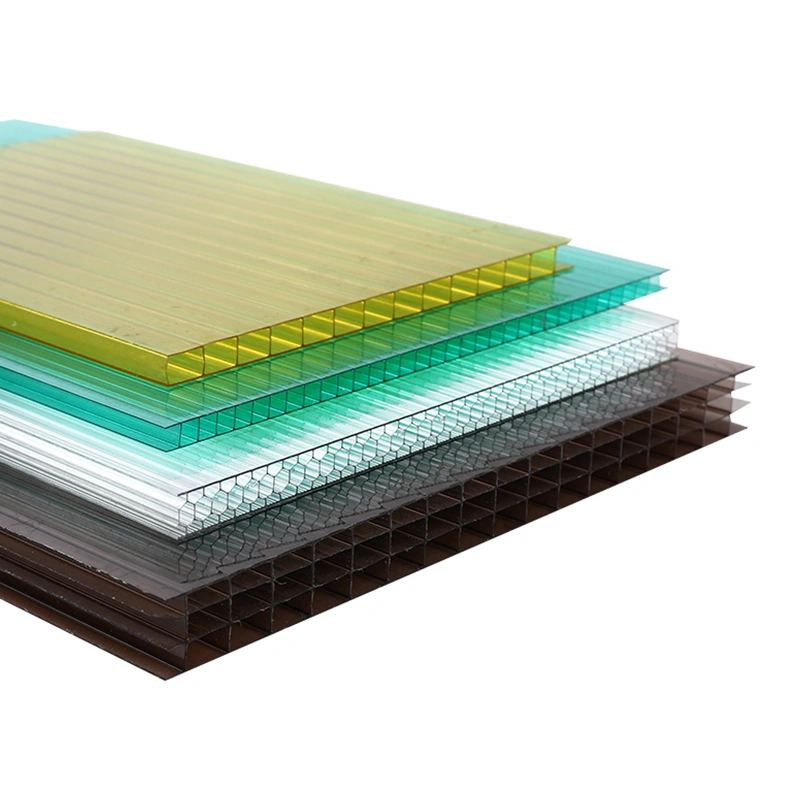

Honeycomb Polycarbonate Sheet

  • Lightweight and easy to install and operate.
  • 80% light transmission and light diffusion.
  • Provides insulation and energy savings.
  • Durable and safe.

Inquiry Now

Product Details

Name

Honeycomb polycarbonate sheet

Raw material100% bayer material or sabic material or customized
ColorTransparent, milky white, lake blue, grass green, brown or customized
CertificateISO9001、SGS、Test Report
Thickness6-20mm or Customized
Width1.22m、1.56m、1.82m、2.10m, The maximum width can be made 2.1 m special width, large quantity can be customized
length2.44m or custom-made,  the flat plate is: 1.22m*2.44m
Warranty10-Year
SurfaceUV protection, Anti-fog,Anti-static,hardening,fire retandant,etc.
SamplesFree samples will send you for test
ApplicationRiot shields, Submarine covers, Tunnel protection, Noise barriers, special machinery covers, Greenhouses, Carports, Skylights
TypeTwin walls Polycarbonate Sheet
Multi-walls Polycarbonate Sheet
Honeycomb Polycarbonate Sheet
Light TransmissionDepending on the color, the transmittance can be up to 0-89%.
Energy savingLow heat transfer coefficient (K value), good thermal insulation, energy saving is 1.5-1.7 times of the same thickness of glass.
LightThe weight is 1/15 of the same thickness of glass.
Impact StrengthGood toughness, not easy to be damaged in transportation, installation and use;Its impact strength is 250 times that of glass and 30 times that of plexiglass.
Resistance to agingThe surface of the product contains a UV-resistant coextruded layer, outdoor weather resistance is good, long-term use still maintain good optical properties and mechanical properties
Resistance to wind pressureWind pressure performance up to the national standard GB/T 7106-2008 level 1.
Large temperature differenceLong-term use temperature: -40c to 120C.
Effect of SoundproofPolycarbonate with hollow structure has good sound insulation and can effectively reduce noise.
Flame retardantAccording to the national standard gb8624-2012 is class B1 flammable.
Easy to installThe minimum bending radius is 175 times the thickness of the plate.

FeaturesUnitDate
Specific Gravityg/cm²1.2
LightTransmission%0~88
lmpactStrengthJ/m850
The Bending StrengthN/mm²100
Tensile StrengthN/mm²>=60
Modulus of ElasticityM pa2400
Tensile Stressat BreakM pa>=65
Elongation at Break%>100
Specific HeatKJ/KG·K1.17
Heat ConductivityW/m²·K0.2
Heat Deflection Temperature°C140
Coefficient of Thermal Expansionmm/m·°C0.067
Range of Temperature°C-40~+120
Effect of Soundproof10mm PC sheetAttenuation 33 DB

Honeycomb polycarbonate sheets are a type of sunlight panel manufactured using innovative imported polycarbonate materials (such as Makrolon, Sabic, Lexan). They feature a honeycomb-like structure, providing excellent insulation and a sturdy construction. These panels are commonly used in places that require high transparency, insulation, and thermal performance, such as sports arenas and swimming pools.

One major advantage of honeycomb polycarbonate sheets is their anti-drip property. They significantly reduce the exchange of cold and hot air, keeping the indoor environment drip-free, minimizing fogging, and maintaining relative humidity below 80%, thus reducing the impact of pests on plants. Furthermore, honeycomb polycarbonate panels with hollow structures exhibit outstanding thermal regulation capabilities, storing solar thermal energy and slowing down the cooling process at night, making them excellent high-insulation covering materials. Additionally, panels with honeycomb structures offer advantages in terms of engineering structural mechanics and optical properties, as they can resist strong winds and snow loads without tearing.

Our honeycomb polycarbonate sheets not only boast an aesthetically pleasing and robust appearance but also offer convenient transportation, processing, and installation. They have become an ideal choice for numerous applications in the construction industry. Here are the main advantages of our Songxia honeycomb polycarbonate panels:
Impact resistance and insulation: The honeycomb structure provides higher impact resistance and better insulation, creating a favorable thermal environment and excellent insulation performance for buildings.
UV protection and durability: Through co-extrusion technology, the UV protective layer is uniformly and firmly fused with the polycarbonate substrate, ensuring outstanding durability. Honeycomb polycarbonate sheets can withstand long-term exposure to UV radiation, resist scratches, and maintain their appearance.
Elastic deformation capacity and wind load resistance: Honeycomb polycarbonate sheets have exceptional stability and elastic deformation capacity, even when installed on structures with larger spacing, ensuring structural stability.
Strict production standards: Honeycomb polycarbonate sheets are manufactured according to national standards, ensuring the highest level of product quality and performance.
Customized solutions: We provide tailor-made polycarbonate panels and specialized design and installation solutions to meet customers’ individual needs.

The superior performance and versatile applications of Songxia honeycomb polycarbonate sheets have made them highly favored in the construction industry. Whether for sports arenas requiring high insulation and thermal performance or swimming pools demanding precise light control, our honeycomb polycarbonate panels can meet your requirements, offering a reliable and aesthetically pleasing solution for your building projects.

1.High Quality: with advanced producing equipment and strong QC team.

2.High Supply Ability: with 8 producing lines and output of 50,000 tons per year.

3.Rich Experience: with more than 20 years experience.

4.Nice Service: quick reply and warm service to meet your needs.

5.Quality Assurance: 5-10 years.

6.impact resistance, bendable, high transmittance, difficult to burn, light-weight, nice sound insulation, anti-drip, anti-ultraviolet light, energy saving, environmental protection, etc.
