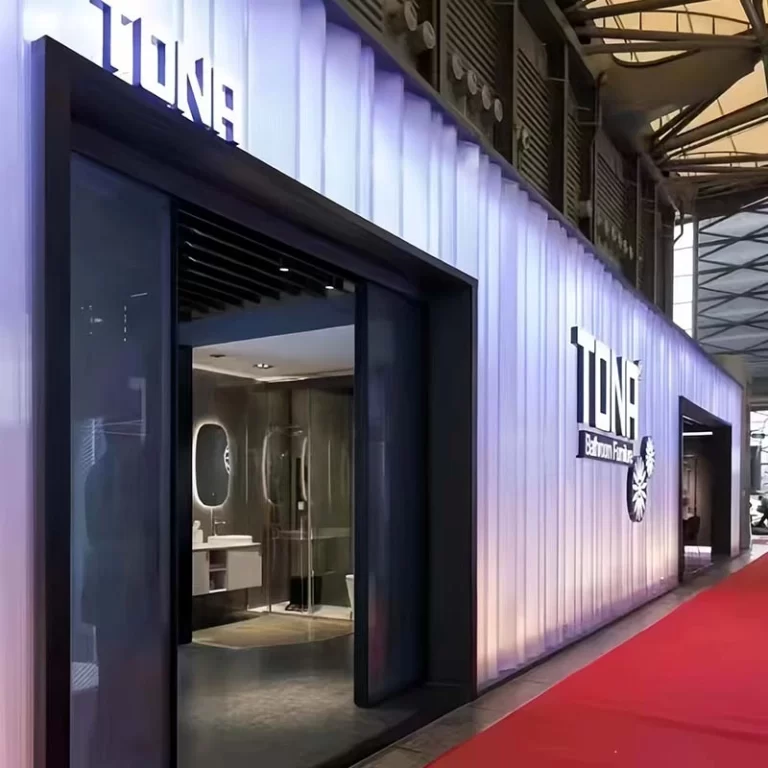

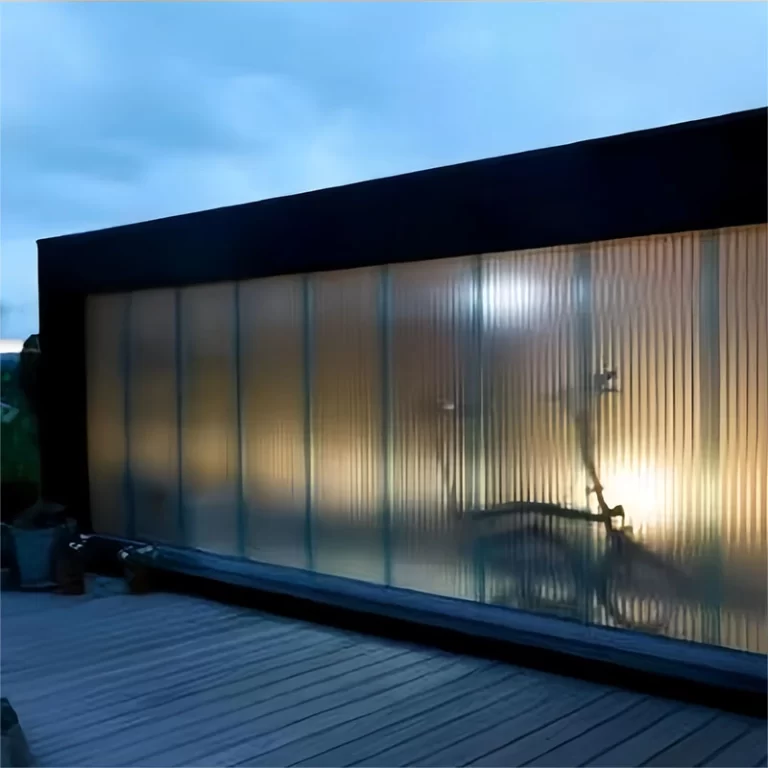

Polycarbonate U-Panel for exterior wall decoration

Translucent Building Elements

Name Polycarbonate U-Panel
Thickness 10mm-60mm
Length Customized
Material  100% Virgin polycartonate material
Use Facades, roofs, window and shed glazings, partition walls, rain screens and roof lights
Applications Sports, Industrial, Educational and Residential
Characteristics High impact thermoplastic, translucent, ball-impact resistant, light-weight, high temperature resistance, anti-glare daylight, UV protection
Temperature resistant -40°to +115°
Guarantee 10-year warranty

Inquiry Now

Product Description

Polycarbonate U-Panel, a robust and adaptable building solution designed for various architectural needs. Engineered with panel side couplings and polycarbonate clips situated outside the water-bearing layer, this innovative construction ensures suitability for low roof pitches starting from 5°. The Polycarbonate U-Panel excels not only in roofing but also in facade applications, offering versatility and durability. With its multi-layer polycarbonate boards, this panel provides exceptional insulation and weather resistance, ensuring optimal performance in diverse climates. From residential to commercial projects, Polycarbonate U-Panel delivers reliable functionality and aesthetic appeal. Its durable design guarantees longevity, while its flexibility opens up endless possibilities for creative architectural designs. Believe that polycarbonate U-Panel can bring unexpected effects to your building

Product Specification

Board type Standard width
(mm)
Standard thickness
(mm)
UV Coating Curvature Transmittance
(transparent)
Color
Rice-shaped structure 1040 10 50 2500 78

Red


Orange


Golden


Green

Blue

Baolan

Brown

Transparent

12 3000 73
14 3500 68
16 4000 65
18 4500 62
20 5000 60
25 6250 56
30 7500 52
honeycomb structure 600 8 50 2000 75
10 2500 72
12 3000 70
1040 16 4000 65
18 4500 60
20 5000 55
4-layer structure 600 8 50 2000 75
10 2500 72
12 3000 70
16 4000 68
1040 10 2500 72
12 3000 70
16 4000 68
6-layer structure 600 8 50 2000 75
10 2500 72
12 3000 70
16 4000 68
18 4500 65
20 5000 62
22 5500 58
1040 10 2500 72
12 3000 70
16 4000 68
20 5000 62
25 6250 57
Rice-shaped 7-layer structure 1040 30 50 7500 58
35 8750 56
40 10000 53



Product Advantages

  1. Anti-leakage design: unique U-shaped connection and free floating structure, the board can be freely expanded and contracted in the system, solving the problem of thermal expansion and contraction.
    Thus achieving 100% prevention of water leakage;
  2. High load-resistance design: When it can carry wind loads up to 5500 Pa, the panels will not fall off from the roof;
  3. Durability: The anti-UV co-extrusion layer on the surface of the board is as high as 100 microns, which can ensure that the board will not age for 10 years;
  4. Connection method: hidden connection, the U-shaped metal connector (PC connecting pipe) is structurally consistent with the U-shape, and the connection profile is hidden and invisible.
    Not only is it beautiful but it also increases the strength of the entire system;
  5. Simple installation: The boards do not need to be nailed or glued, and the installation is simple and fast, saving installation labor costs;
  6. Appearance: The material has uniform color, pure color, and no color difference; the lines are beautiful and smooth; full of rhythm, and the overall harmonious and beautiful appearance.

Product Application

  1. Roof lighting roofs for sports venues, swimming pools, gyms, etc.;
  2. Roof lighting roofs of high-speed rail stations, railway stations and airports;
  3. Industrial factory lighting (skylights, awnings, facade lighting, partitions, etc.);
  4. Private or commercial or retail buildings (car booths, dome lighting, aisle lighting, etc.);
  5.  Municipal projects (overpasses and corridor awnings);
  6. Agricultural buildings (greenhouses, gardening, etc.).
