| Name | Corrugated Polycarbonate Sheet |
| Raw material | 100% bayer material or sabic material or customized |
| Color | Transparent, blue or customized |
| Certificate | ISO9001、SGS、Test Report |
| Thickness | 0.8mm-3.0mmmm or Customized |
| Warranty | 10-Year |
| Surface | UV protection, Anti-fog,Anti-static,hardening,fire retandant,etc. |
| Samples | Free samples will send you for test |
| Application | Riot shields, Submarine covers, Tunnel protection, Noise barriers, special machinery covers, Greenhouses, Carports, Skylights |
Durable Corrugated Polycarbonate Roofing Solutions
- Lightweight and easy to install and operate.
- 80% light transmission and light diffusion.
- Provides insulation and energy savings.
- Durable and safe.
Product Details
| Light Transmission | Depending on the color, the transmittance can be up to 0-89%. | |
| Energy saving | Low heat transfer coefficient (K value), good thermal insulation, energy saving is 1.5-1.7 times of the same thickness of glass. | |
| Light | The weight is 1/15 of the same thickness of glass. | |
| Impact Strength | Good toughness, not easy to be damaged in transportation, installation and use;Its impact strength is 250 times that of glass and 30 times that of plexiglass. | |
| Resistance to aging | The surface of the product contains a UV-resistant coextruded layer, outdoor weather resistance is good, long-term use still maintain good optical properties and mechanical properties | |
| Resistance to wind pressure | Wind pressure performance up to the national standard GB/T 7106-2008 level 1. | |
| Large temperature difference | Long-term use temperature: -40c to 120C. | |
| Effect of Soundproof | Polycarbonate with hollow structure has good sound insulation and can effectively reduce noise. | |
| Flame retardant | According to the national standard gb8624-2012 is class B1 flammable. | |
| Easy to install | The minimum bending radius is 175 times the thickness of the plate. | |
| Features | Unit | Date |
| Specific Gravity | g/cm² | 1.2 |
| LightTransmission | % | 0~88 |
| lmpactStrength | J/m | 850 |
| The Bending Strength | N/mm² | 100 |
| Tensile Strength | N/mm² | >=60 |
| Modulus of Elasticity | M pa | 2400 |
| Tensile Stressat Break | M pa | >=65 |
| Elongation at Break | % | >100 |
| Specific Heat | KJ/KG·K | 1.17 |
| Heat Conductivity | W/m²·K | 0.2 |
| Heat Deflection Temperature | °C | 140 |
| Coefficient of Thermal Expansion | mm/m·°C | 0.067 |
| Range of Temperature | °C | -40~+120 |
| Effect of Soundproof | 10mm PC sheet | Attenuation 33 DB |
Overview
Corrugated polycarbonate sheets are lightweight, high-strength roofing and cladding panels formed with a wave profile that adds stiffness and channels rainwater.
Songxia sheets are extruded from virgin SABIC LEXAN™ or Covestro MAKROLON® resin and receive a co-extruded UV cap for long outdoor life.
Light Transmission
Clear corrugated panels pass up to 89 percent of visible light, providing bright daylight while filtering harmful ultraviolet energy.
Thermal Insulation
The corrugation traps air, lowering the heat-transfer coefficient and helping buildings stay cooler in summer and warmer in winter.
Impact and Weather Resistance
Material toughness is about 250 times that of glass, so the panels resist hail, wind-blown debris, and accidental impact. The UV layer prevents yellowing and surface chalking over a long service life.
Fire Performance
Flame-retardant grades meet GB 8624-2012 class B1 to slow flame spread and reduce smoke.
Installation

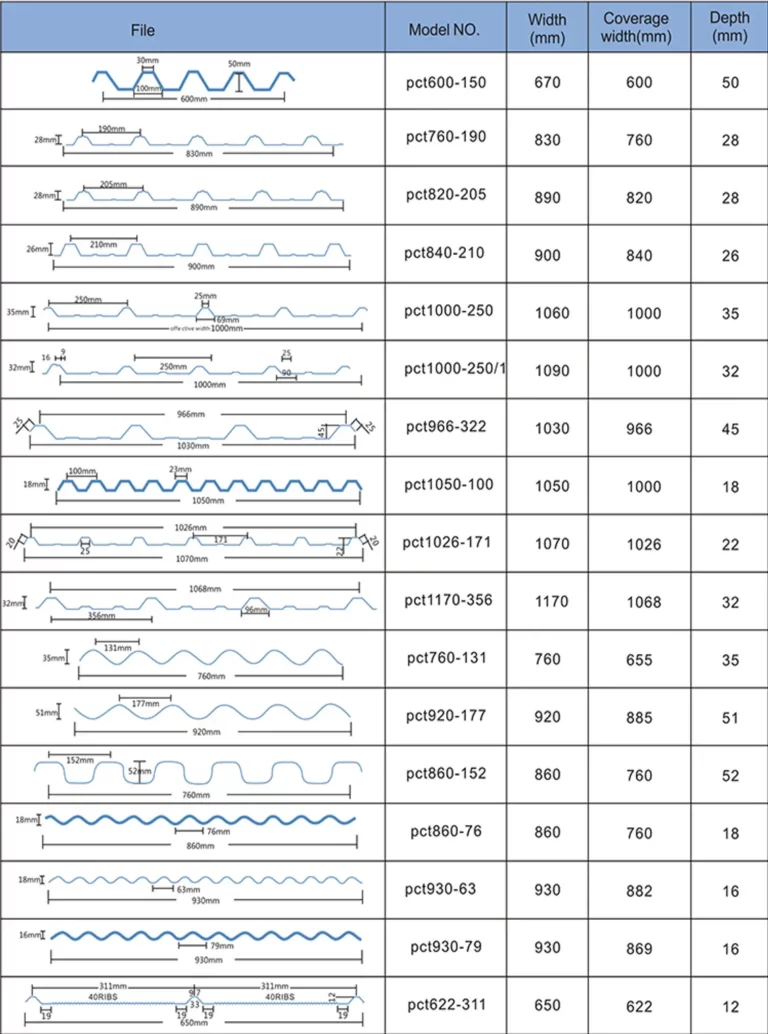

Wave profiles match common metal-sheet patterns. Tight overlapping joints and wide corrugation peaks give good waterproofing without complex flashings. The minimum cold-bend radius is 175 × sheet thickness, allowing curved canopies.
Typical Applications
- Skylights and daylighting roof strips in metal buildings
- Canopies, awnings, and patio covers
- Greenhouse and nursery roofs
- Walkway and carport shelters
- Industrial façades that require translucent panels
Combining high light transmission, good insulation, strong impact resistance, UV stability, and straightforward installation, Songxia corrugated polycarbonate sheets provide reliable and attractive protection for residential, commercial, and industrial projects.
Reliable Quality: We use advanced production equipment and a strict quality‑control system.

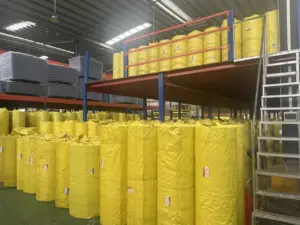

Large Capacity: Eight production lines give an annual output of 50 000 tons.
Proven Experience: We have more than twenty years of manufacturing and export history.
Responsive Service: Dedicated staff reply quickly and follow each order through delivery.
Warranty: We provide a five‑ to ten‑year product warranty.
Performance: Our sheets offer high impact resistance, good bendability, high light transmission, self‑extinguishing fire performance, low weight, sound insulation, anti‑drip surfaces, UV blocking, energy savings, and recyclability.
